PLT & PowerClamp & SRNE MPPT Bundle - Hydro Turbine

$ 5,647.00 NZD
The options below allow us to gather important information which helps speed up the processing of your order. Please see the shopping cart for accurate price and weight as these options may add items to your cart.

PowerSpout Bundles are our most cost effective deals. They are only available through our dealers who can often offer discounted global freight.

The PLT, PowerClamp &  SRNE MPPT Bundle contains:

Refer to each linked product item above for a full description.

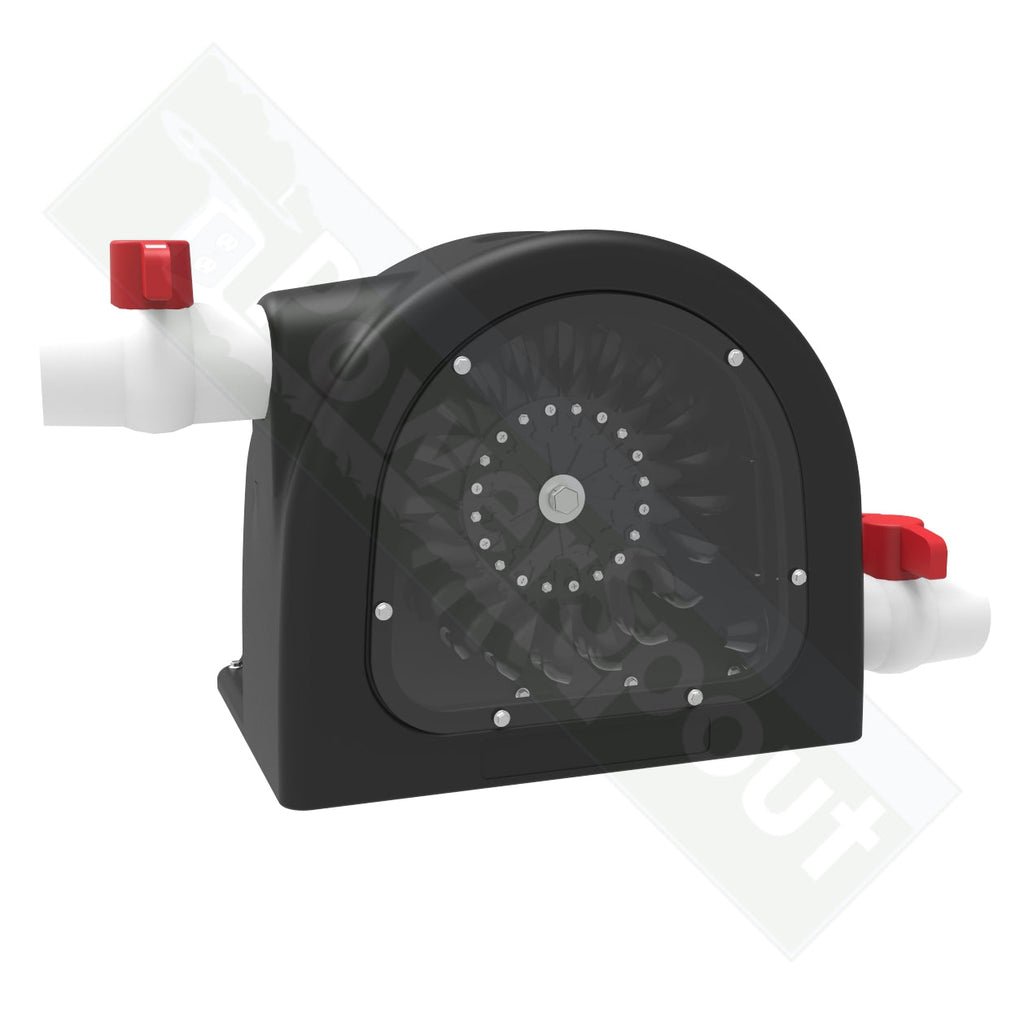

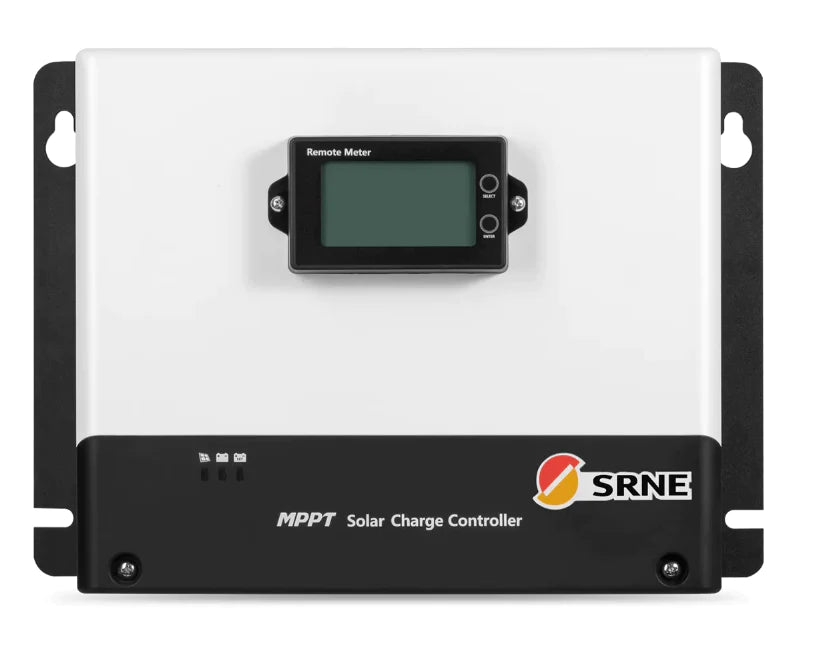

Click here to watch a video an typical example a PowerSpout PLT80HP turbine and 250V SRNE MPPT operating at 600W when added to a home with an existing solar PV power system. Surplus power is automatically sent to the hot water tank.  Click here for a video of PowerSpout PLT Cube 80HP turbine operating.

Click here for a larger (remote village scale) hydro and PV power scheme, the equipment used may be different but it gives you a good idea of what is required.

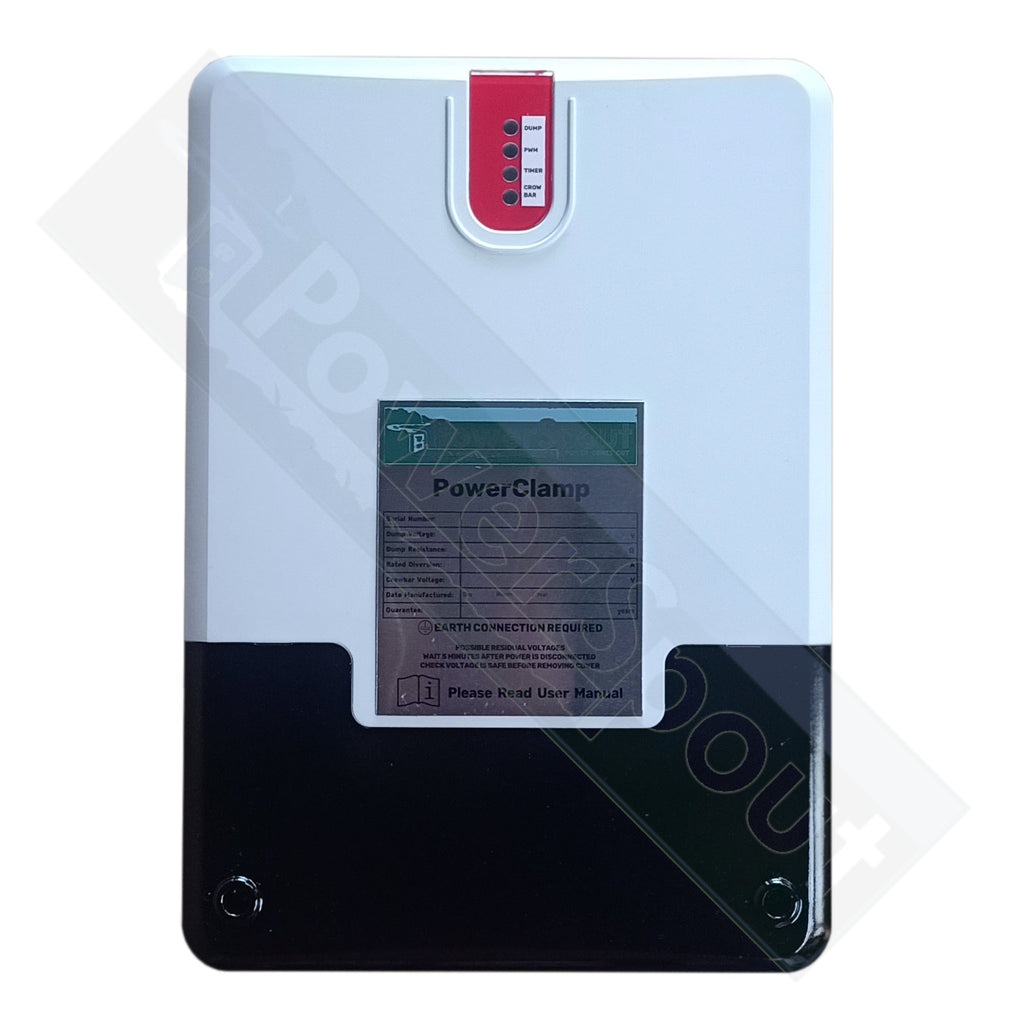

Below is a summary table of the Powerclamp options that you can select when ordering this bundle. Select a turbine output power in the dropdown that is available and exceeds your turbine power.

Refer to PowerSpout Document Index Links for a complete index of documents.



Model Turbine Design Voltage Minimum Dump Voltage Initial Dump Voltage Maximum Dump Voltage Crowbar Voltage
120V (ELV) 80 77 90 103 120
150V 100 95 110 125 150
250V (No Crowbar) 80 77 90 103 -
250V 170 163 190 217 250
450V 270 258 300 342 400
600V 270 258 300 342 400

Refer to PowerSpout Document Index Links for a complete index of documents.
