Doing a DIY project? Rather than locate all the parts you need, buy a complete PMA ready to go.
Select the V/rpm and rotor type you require for your application from the drop down menus.
- Type 2 magnetic rotor for applications up to 1.2 kW at 1600 rpm - 0.75 W/rpm maximum output
- Type 2+ magnetic rotor for applications up to 1.36 kW at 1600 rpm - 0.85 W/rpm maximum output
42 pole stators are coggy which makes them unsuitable for wind turbine applications. If the V/rpm you require is not on this list or you require a cog free PMA please take a look at our 36 pole PMA's.

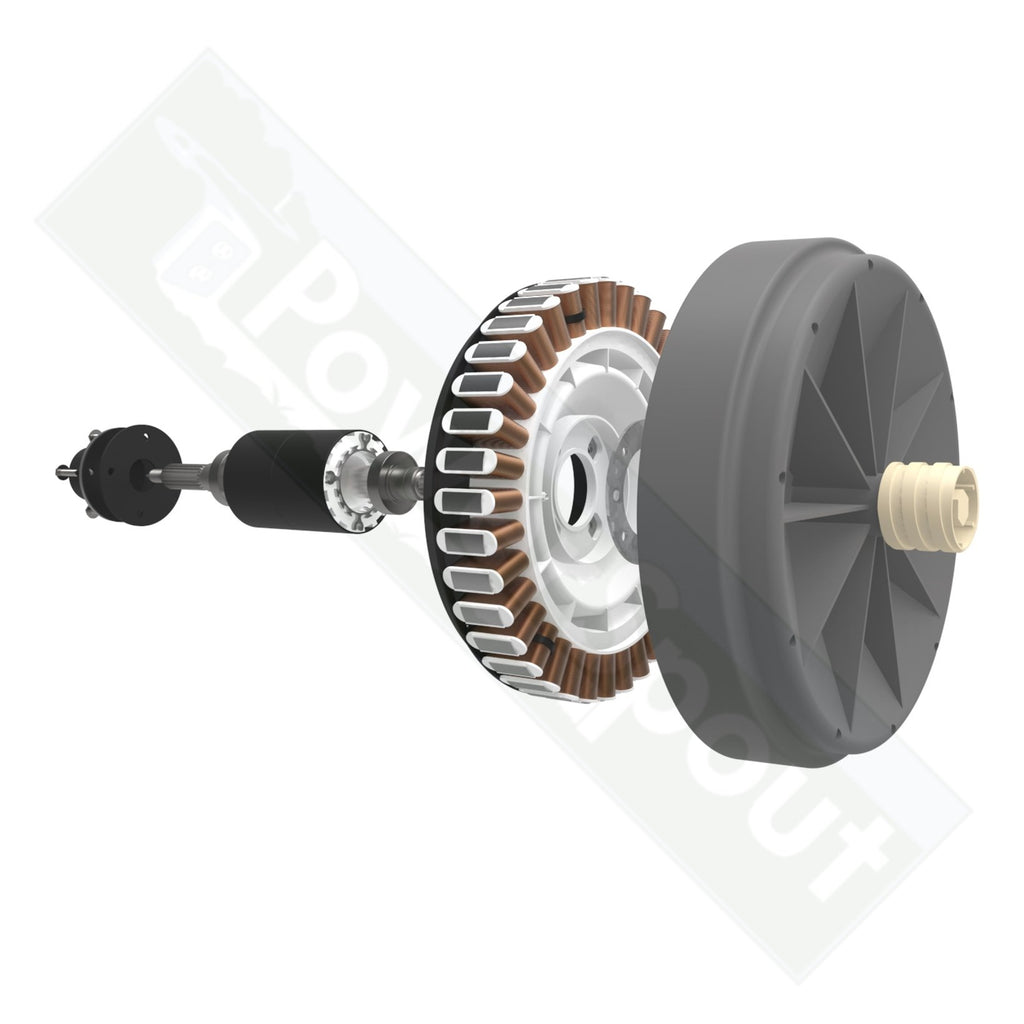

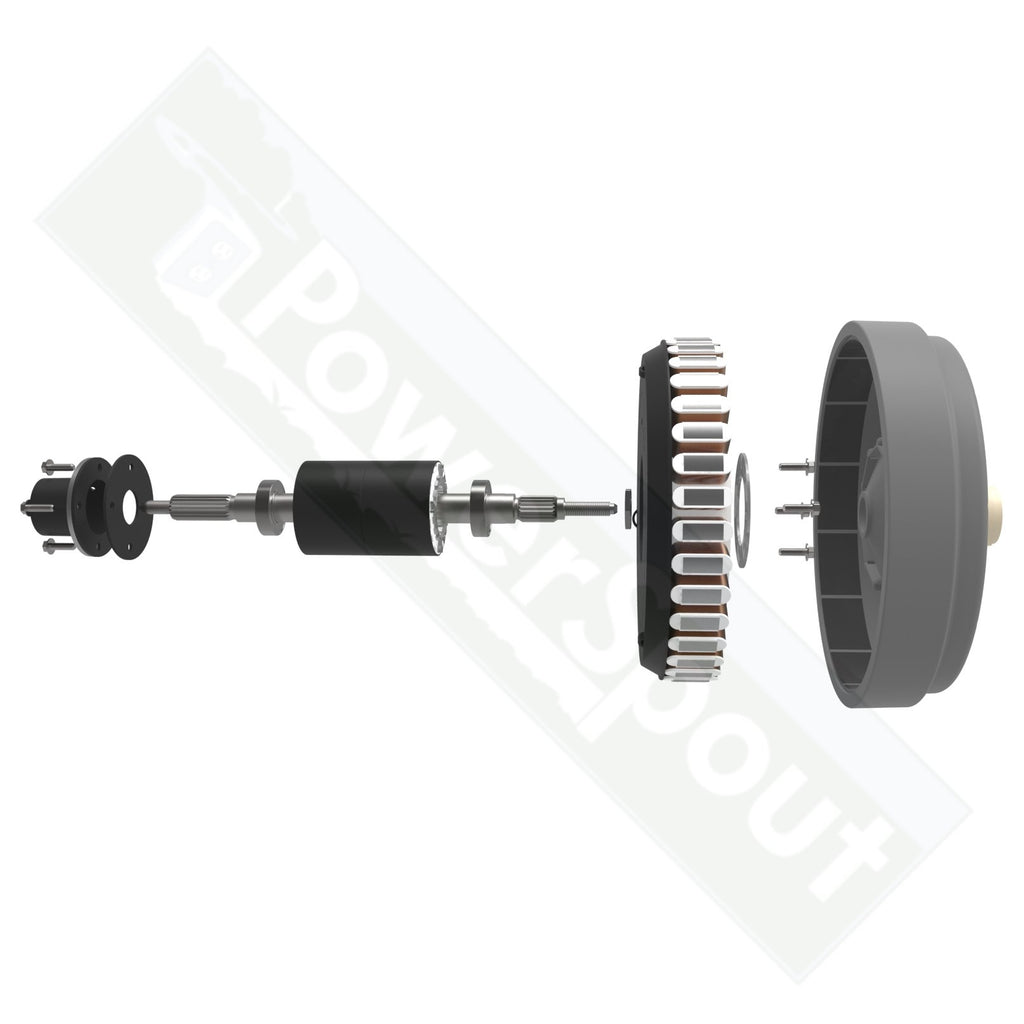

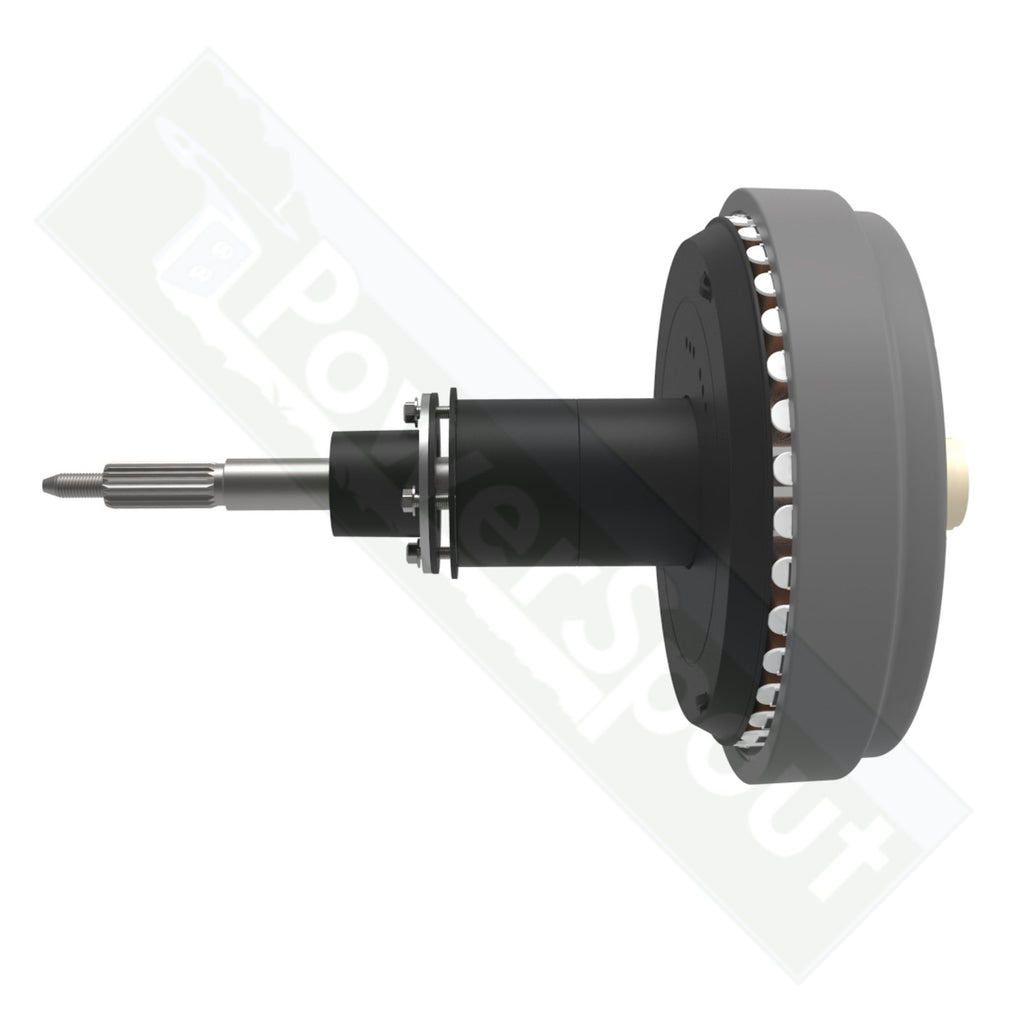

Each PMA comes with the following parts:
- Type 2 or 2+ magnetic rotor
- Shaft and retaining nut
- Bearing block, bearings and fixings

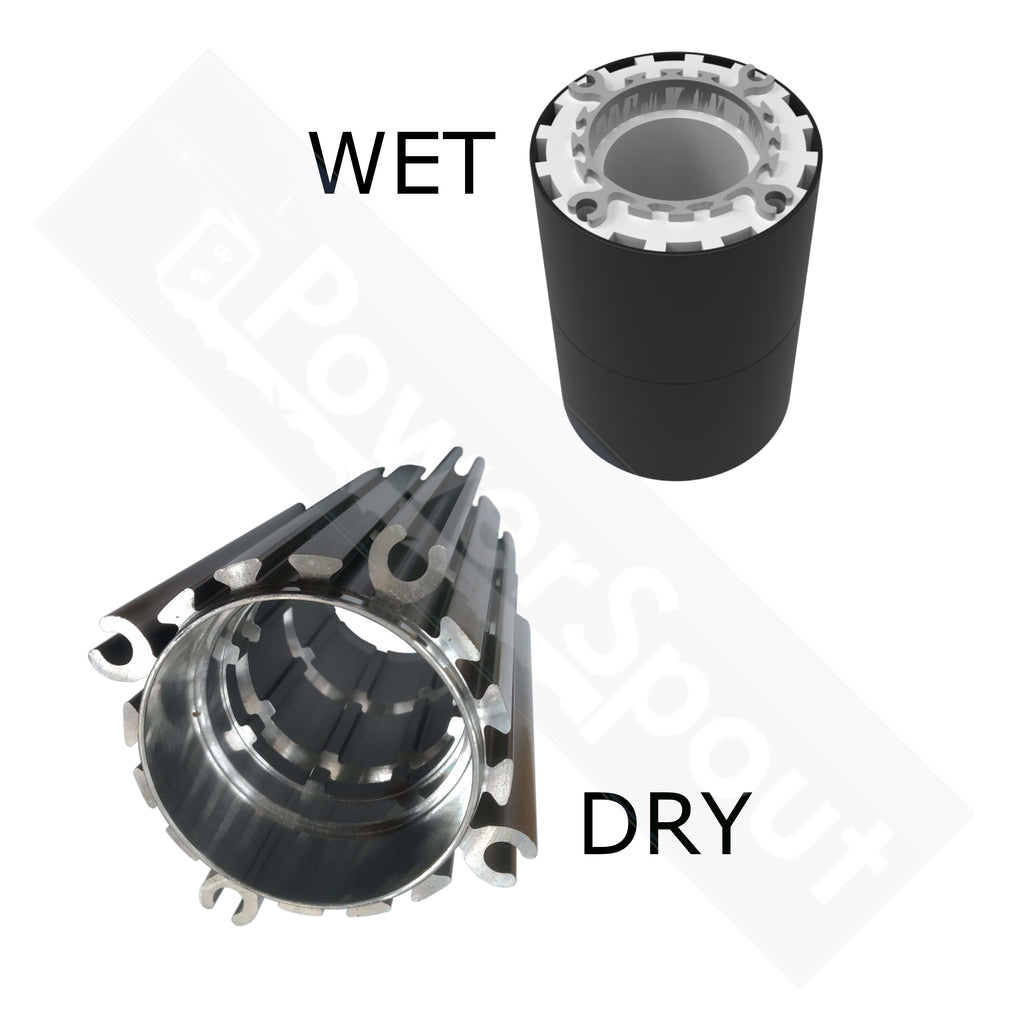

- Seal kit (If "Wet" application is selected)
For selection of correct V/rpm PMA applications read this document
For selection of correct V/rpm BLDC applcations read this document
Please note this product is not suitable as a replacement part for PowerSpout turbines.
Refer to PowerSpout Document Index Links for a complete index of documents.
