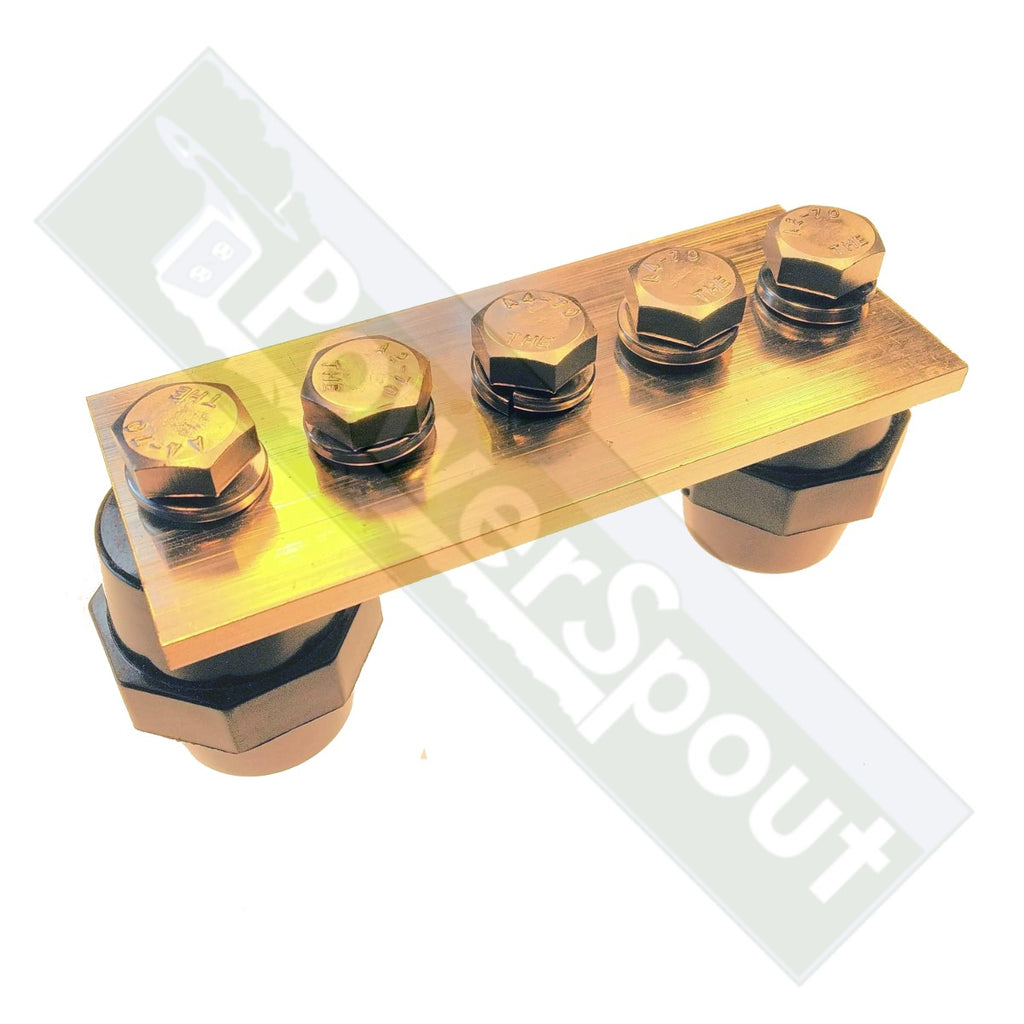

We offer a large range of chrome plated bus bars for ELV applications. Each bus bar measures 40mm wide by 4mm thick with an M8 tapped hole every 20mm. Bars are conservatively rated at 350 amps each. For 600 amp rating run two together on top of each other.

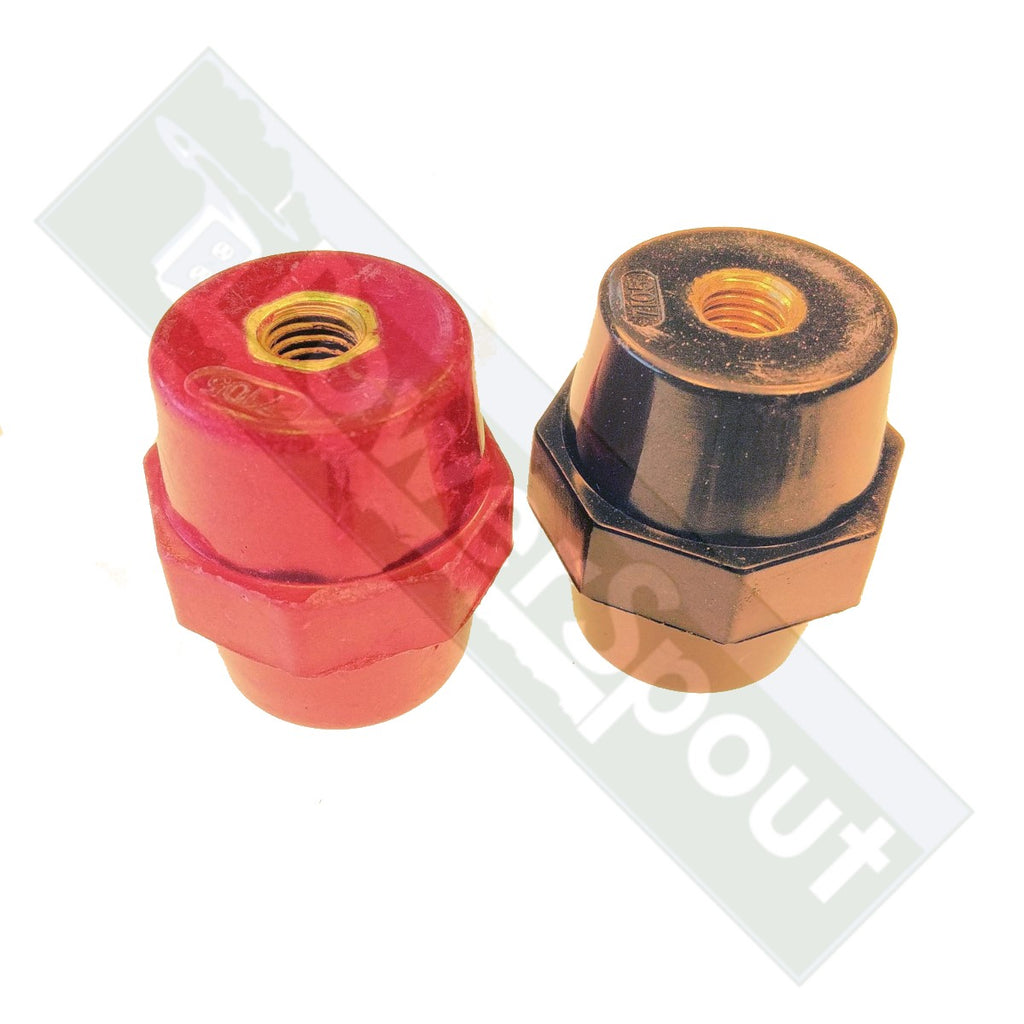

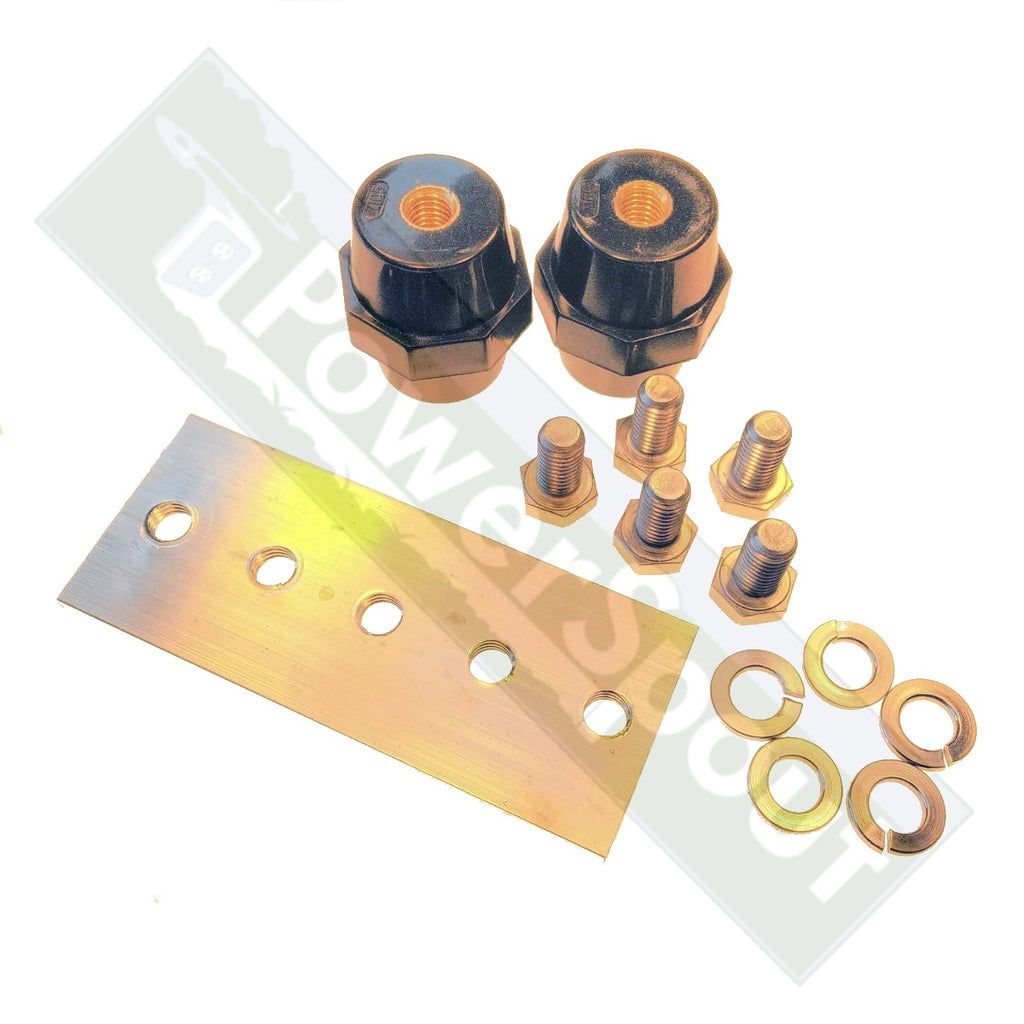

Each bar comes with a stainless steel M8 bolt and split washer for every hole and two insulated stand-offs. Standoffs can be red or black.
Applications in ELV systems often include:
- Combining of several battery strings
- System earth bus bar
- System common negative bus bar
- System positive bus bar
We supply bars in:
- 100 mm long with 5 holes
- 140mm long with 7 holes
- 200mm long with 10 holes
- 250mm long with 12 holes
- 300mm long with 15 holes
- 400mm long with 20 holes
- please contact us for longer lengths up to 1000mm long
It you need a cover to fit over your bus bar, then using one our PVC enclosures and cutting the back out of the enclosure is a good way to provide touch protection, hide wires and make your installation look tidy and safe.
Note: if wiring your own system in NZ, you can do so for voltages up to 120 VDC (ELV) if you have suitable knowledge and experience. For LV systems (>120 VDC) this is prescribed electrical work and it must be done by a licenced electrician.
