PLT Cube, SRNE MPPT & PowerClamp Bundle

$ 4,357.00 NZD
The options below allow us to gather important information which helps speed up the processing of your order. Please see the shopping cart for accurate price and weight as these options may add items to your cart.

PowerSpout Bundles are our most cost effective deals as they use all the available DHL carton mass and volume. They are only available through our dealers who can often offer discounted global freight.

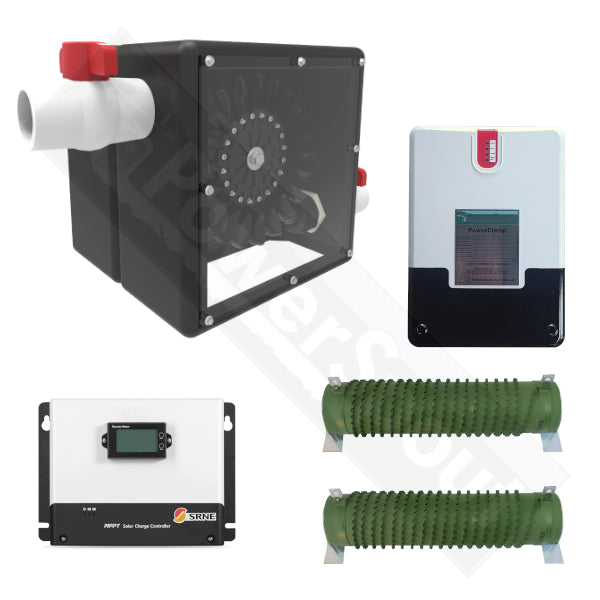

The PLT Cube, SRNE MPPT & PowerClamp Bundle contains:

Refer to each linked product item above for a full description.

Click here to watch a video an typical example a PowerSpout PLT80HP turbine and 250V SRNE MPPT operating at 600W when added to a home with an existing solar PV power system. Surplus power is automatically sent to the hot water tank.  Click here for a video of PowerSpout PLT Cube 80HP turbine operating.

Click here for a larger (remote village scale) hydro and PV power scheme, the equipment used may be different but it gives you a good idea of what is required.

Below is a summary table of the Powerclamp options that you can select when ordering this bundle. Select a turbine output power in the dropdown that is available and exceeds your turbine power.

Refer to PowerSpout Document Index Links for a complete index of documents.


Model Turbine Design Voltage Minimum Dump Voltage Initial Dump Voltage Maximum Dump Voltage Crowbar Voltage
120V (ELV) 80-100 90 105 120 140
250V 170 163 190 217 250
450-600V 270 258 300 342 400
Bespoke up to 350

up to 500

This PowerClamp has some new features:

  • Adjustable dump voltage.
  • Two aux signals (one PWM and one timer) so you can divert excess power to a useful load before dumping power.

Please read the detailed specifications and installation guide prior to purchase with your PowerSpout hydro turbine.

Please read our higher voltage applications quide for more detailed information on this topic.
