LH Draft Tube Adapter Bundle - Hydro Turbine

PowerSpout Packages represent our most cost-effective engineering solutions. These packages are available exclusively through our dealers where dealers can often advise how to best package what best combination of products to order in order to minimize the freight cost.

The LH Draft Tube Adapter Bundle contains:

• PowerSpout LH Turbine
• SKF 12-month auto greaser and pre-charge
• LH Draft Tube Adaptor
• DHL Freight Insurance

Plus your choice of either:

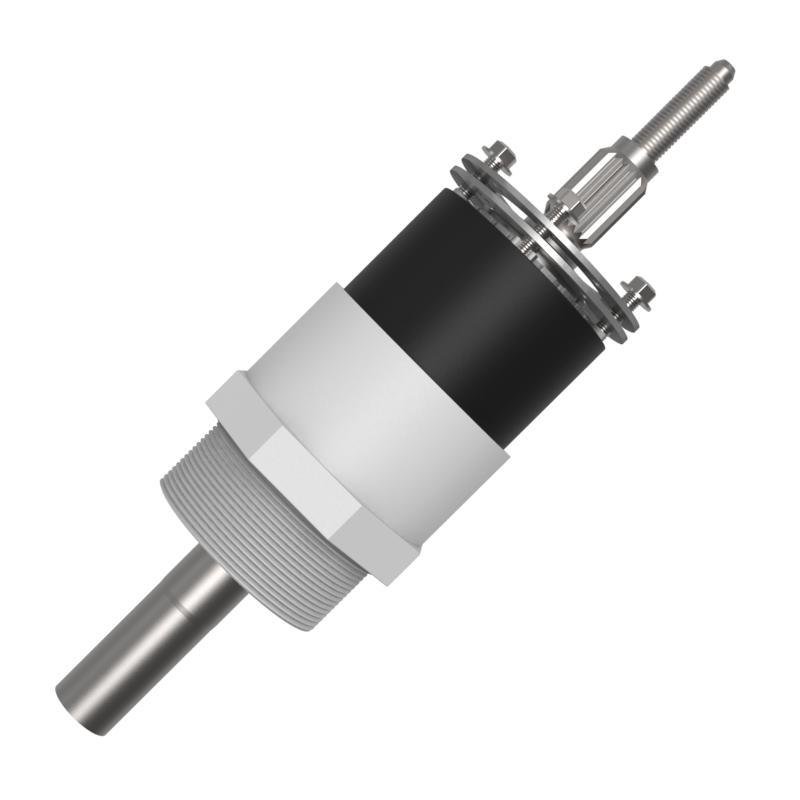

1. Spare bearing block and shaft

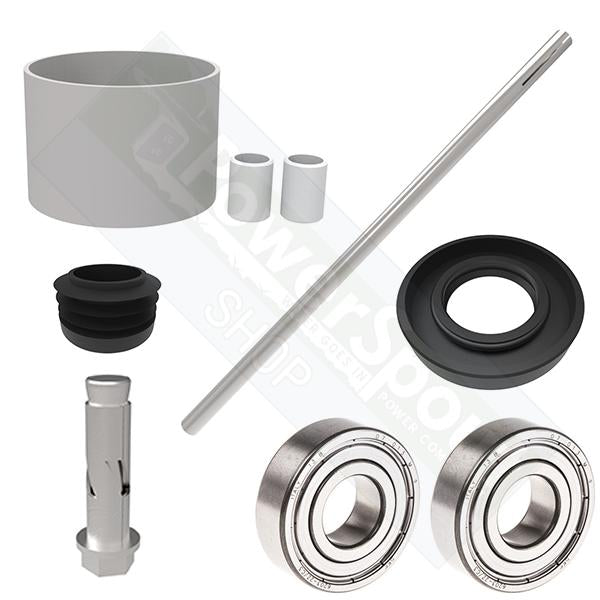

2. LH spare parts kit that includes:

• 1 x SKF 6005 top bearing set
• 1 x 48mm seal
• 1 x Cutlass bush
• 1 x 19mm drive shaft (pipe)
• 1 x PVC 160mm propeller liner
• 1 x 12mm expanding bolt
• 1 x prop end cap

Refer to each linked product item above for a full description.

Note that the spare parts (excluding bearings) in this bundle remain the property of EcoInnovation NZ Limited until the expiration of the warranty period. At that time, ownership of any unused components permanently transfers to the original client.

Refer to PowerSpout Document Index Links for a complete index of documents.

Premium SKF Bearing Protection Standard: To maximize turbine reliability in demanding wet environments, this package features industrial-grade SKF lubrication protection:

• SKF Bearing Pre-Charge: The bearing block arrives pre-charged with 70g of high-performance SKF LGWA 2/0.4 grease to eliminate early moisture condensation and water ingress.
• SKF Automatic Lubricator: Includes one (1) SKF LAGD 125/WA2 automated greaser, providing over 12 months of continuous, worry-free lubrication. Correct annual replacement extends your bearing warranty to match the full duration of the turbine warranty (up to 2–3 years depending on model).
