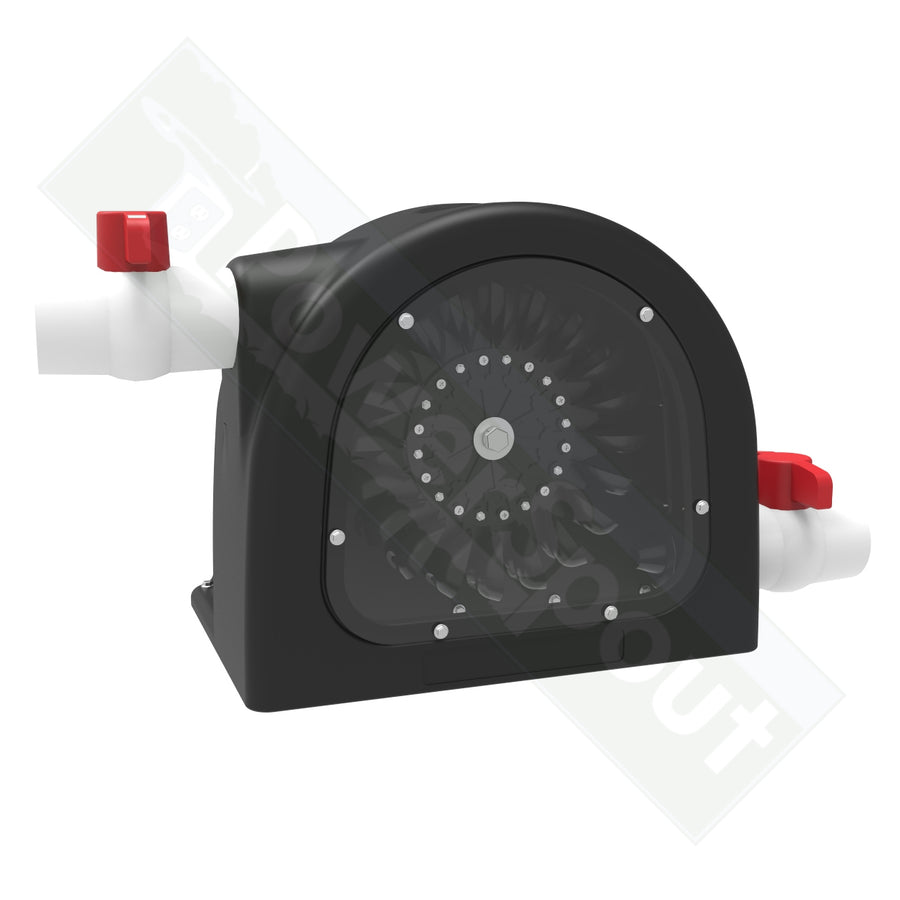

PLT & PowerClamp Bundle - Hydro Turbine

$ 4,959.75 NZD

All prices ex. GST

SKU: 1544

PCE Maximum Voltage

The options below allow us to gather important information which helps speed up the processing of your order. Please use the Advanced Calculation Tool link below to generate your Calculation Code before adding to cart.

Valve Thread

High Power Upgrade

The High Power upgrade is required when your turbine operates at 0.69 W per rpm or more. The Advanced Calculator will indicate if it is required.

High Current Upgrade

Only required when turbine operating current exceeds 30A, which is typically when the load voltage is below 50V. Check your calculation results if unsure.

Freight Insurance

Battery type?

Grid tied

Grid tied solutions require an EMC filter to be fitted to comply with CE conducted emissions requirements. Selecting Yes will add the EMC filter to your cart.

Power conversion equipment to be used

Calculation Code Advanced Calculation Tool

Weight: 29.0 kg

Quantity

Email Us

PowerSpout Packages represent our most cost-effective engineering solutions. These packages are available exclusively through our dealers where dealers can often advise how to best package what best combination of products to order in order to minimize the freight cost.

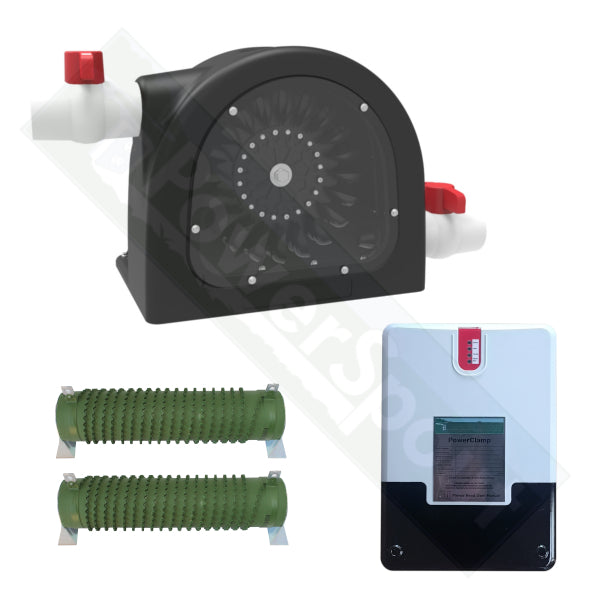

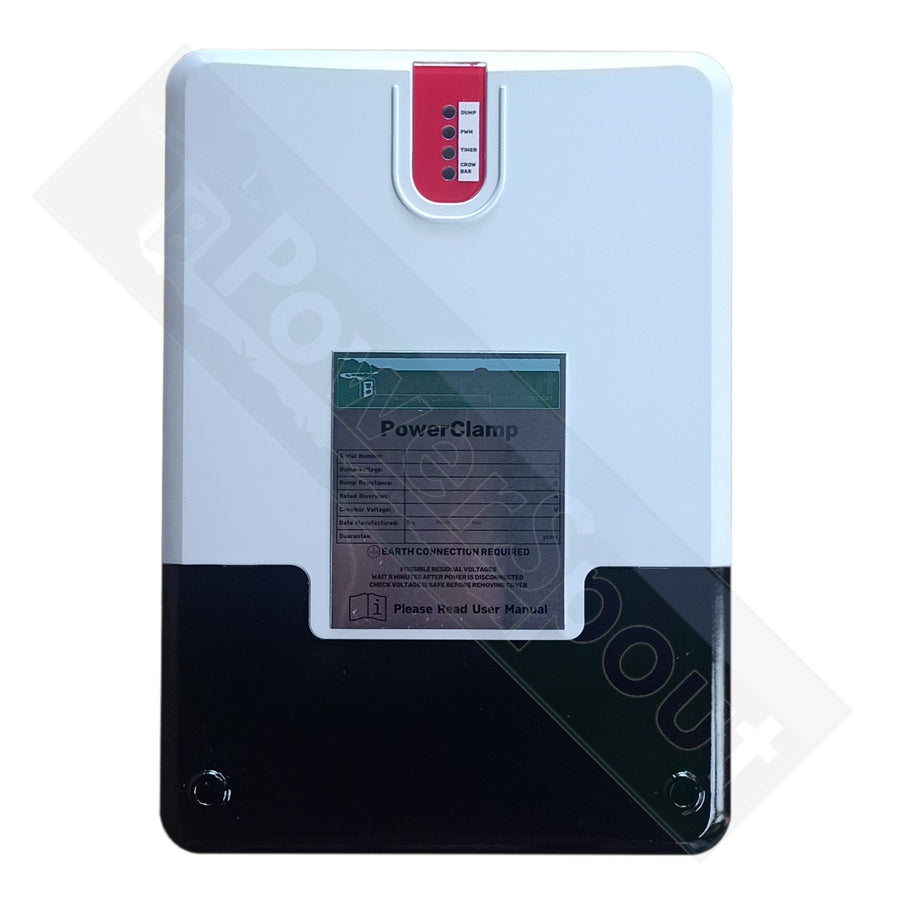

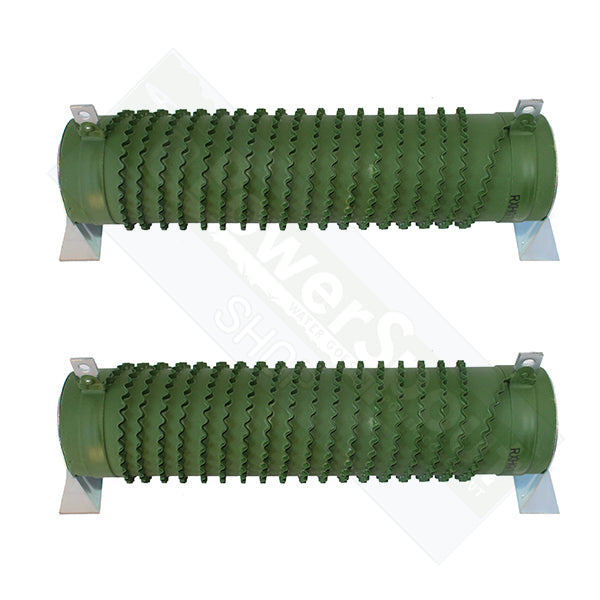

The PLT & PowerClamp Bundle contains:

Refer to each linked product item above for a full description.

Refer to PowerSpout Document Index Links for a complete index of documents.

Premium SKF Bearing Protection Standard: To maximize turbine reliability in demanding wet environments, this package features industrial-grade SKF lubrication protection:

SKF Bearing Pre-Charge: The bearing block arrives pre-charged with 70g of high-performance SKF LGWA 2/0.4 grease to eliminate early moisture condensation and water ingress.

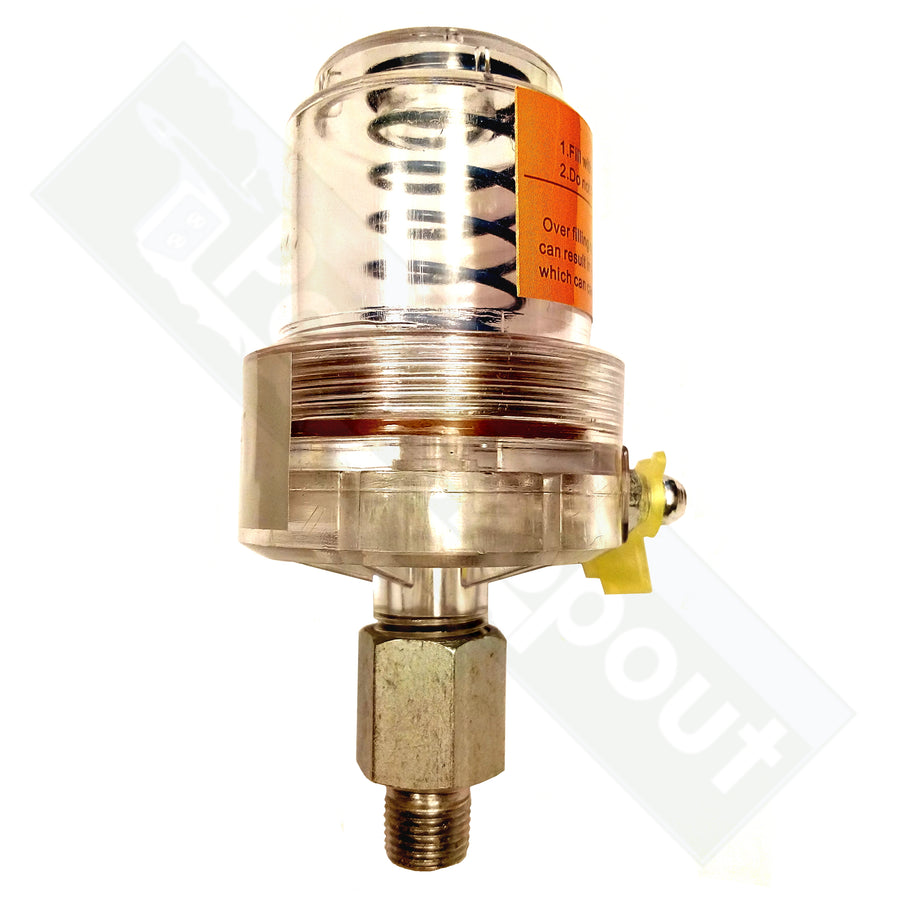

SKF Automatic Lubricator: Includes one (1) SKF LAGD 125/WA2 automated greaser, providing over 12 months of continuous, worry-free lubrication. Correct annual replacement extends your bearing warranty to match the full duration of the turbine warranty (up to 2–3 years depending on model).
