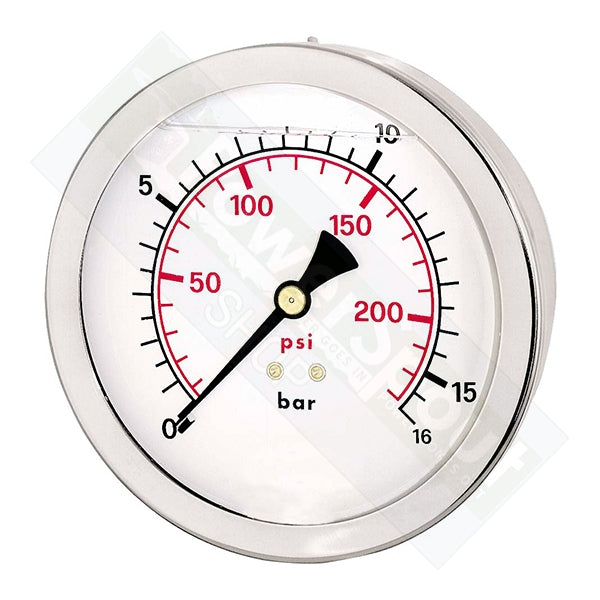

These oil filled stainless steel pressure gauges are required for any PLT, PLT-Cube and TRG hydro installation.
Please note that our PLT and TRG turbines (excludes TRG & PLT-Cube twin packs) are supplied with a suitable mid-range gauge for your site's head.
Please choose the mid-rating to suit the maximum head at your site.
Fitting is ¼” BSP male.
If you live in an area subject to heavy frosts you will need to protect the gauge in an insulated foam cover to protect it from freezing damage.
We also offer a pressure check kit (see drop down menu), this comprises:
- 1/2 m of 6mm pipe
- 5 x fittings 6mm 1/8” BSP fittings
- 5 x 6mm plugs
- 1 x 6mm to ¼” BSP female fitting for pressure gauge
This kit allows you to quickly move the pressure gauge to 5 locations and to remove it when not required to protect from freezing damage.
Refer to PowerSpout Document Index Links for a complete index of documents.
