Basic DIY Turbine Kit

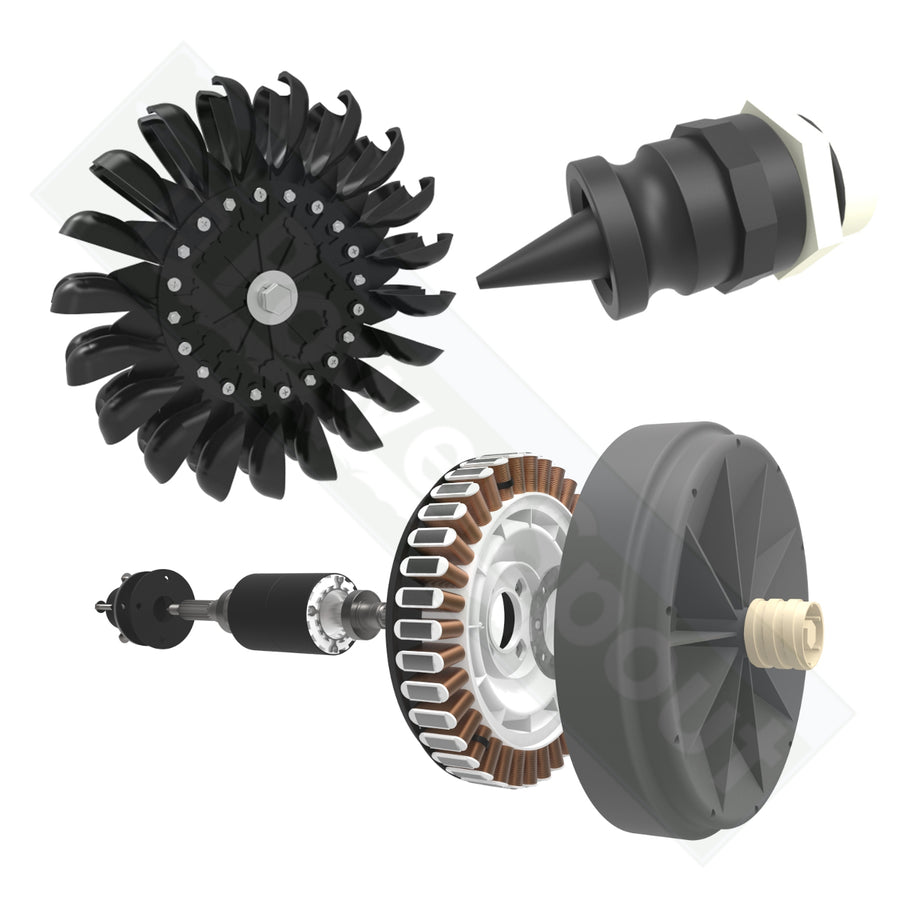

This Basic DIY Turbine Kit includes:

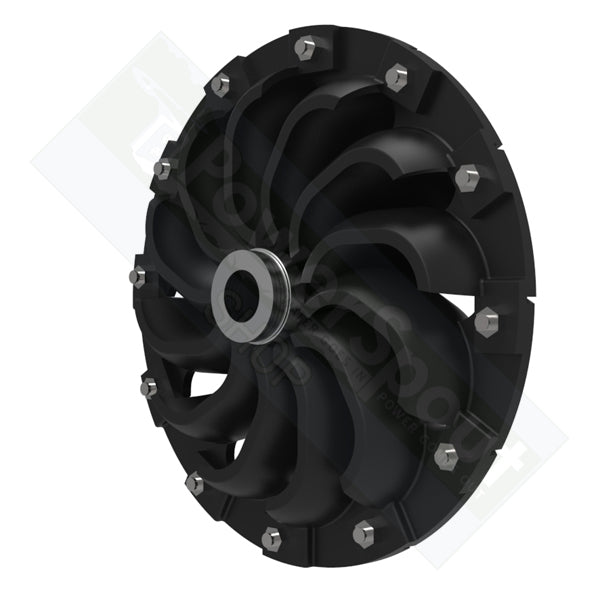

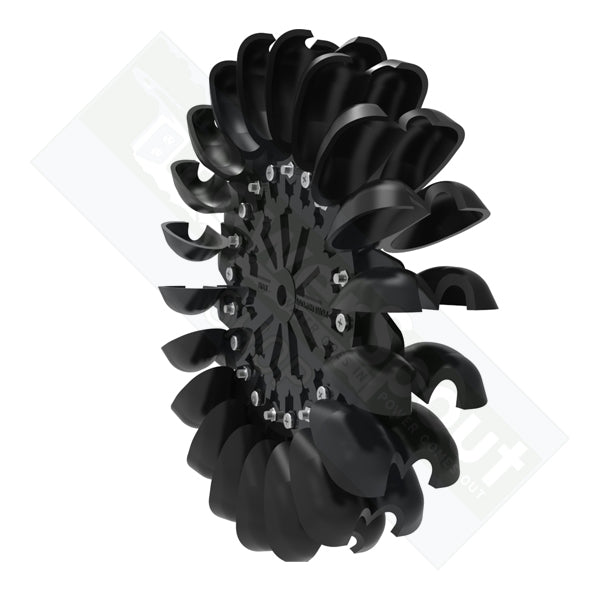

• Pelton rotor or Turgo rotor

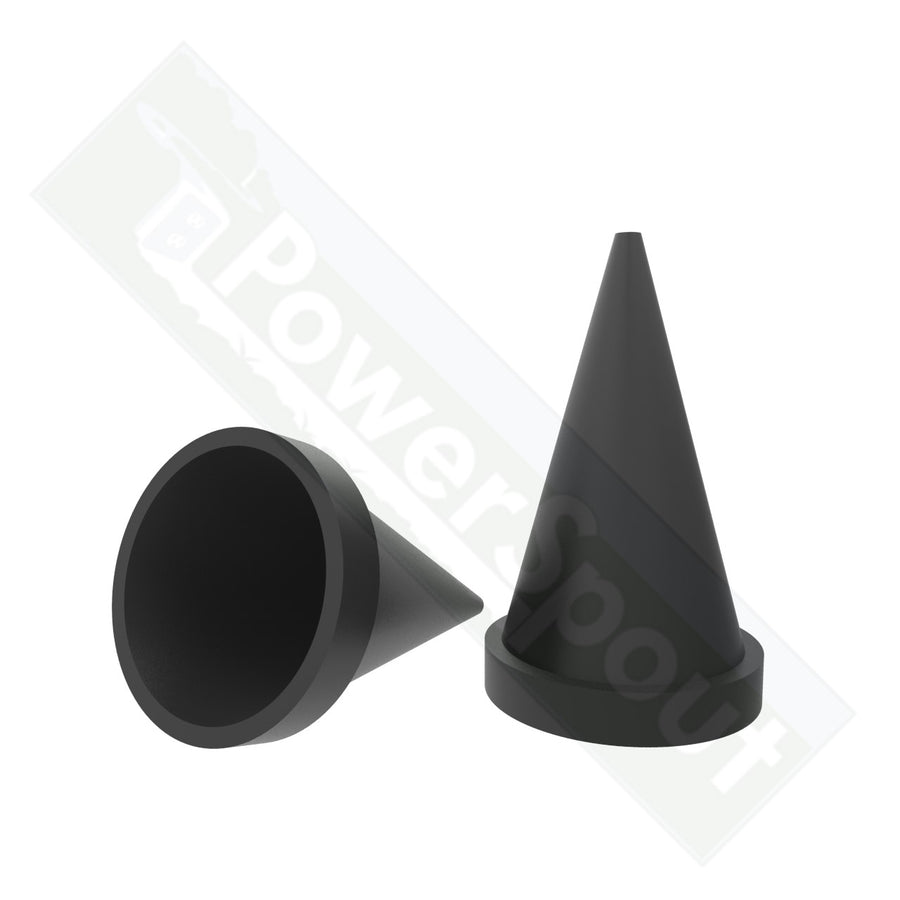

• Tapered Jets (Pelton - 8 / Turgo - 16)

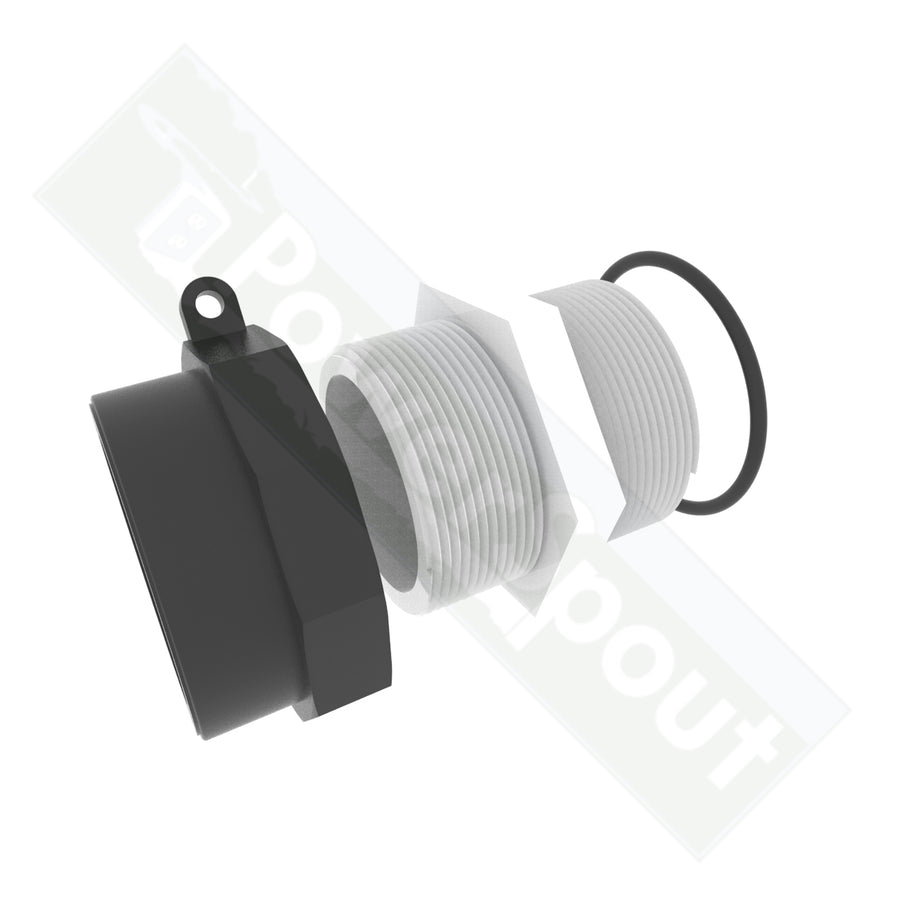

• Jet sleeves, retaining caps and o-rings (Pelton - 2 sets / Turgo - 4 sets)

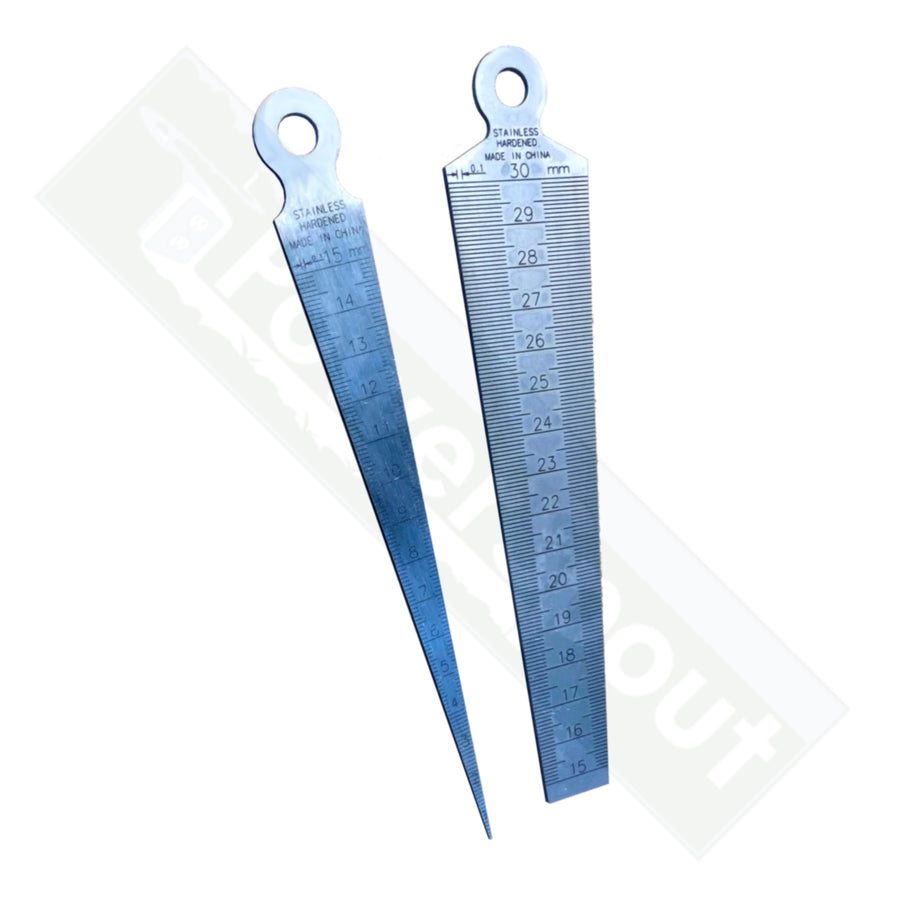

• Taper gauge

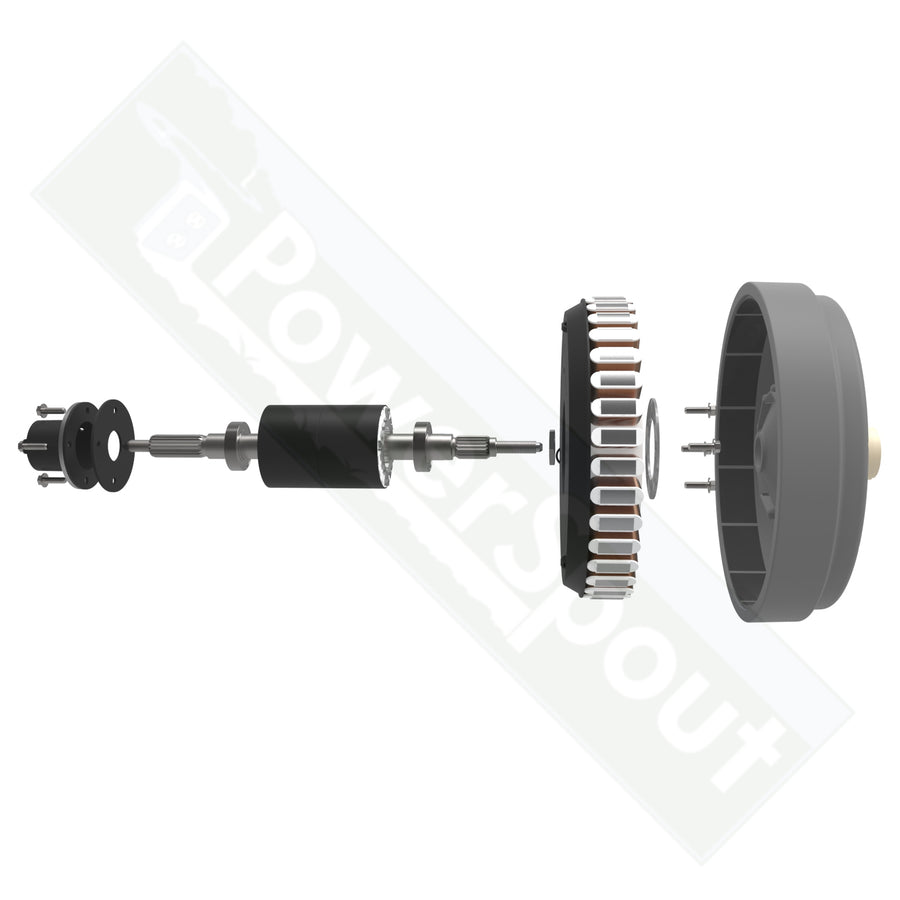

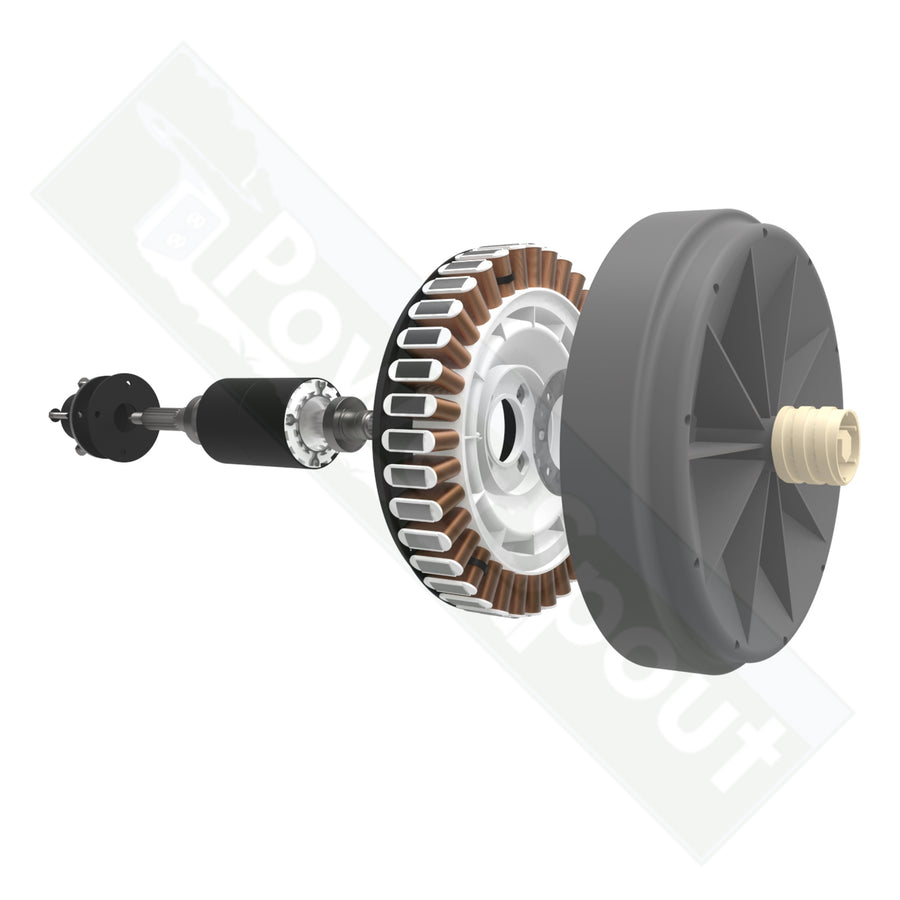

• 42 Pole PMA (Stator wound to your required voltage and a type 2 magnetic rotor). We require a complete and accurate calculation reference code so that we can supply you with the correct stator.
• Bearing block, shaft, bearings, seal kit and fixings (PLT / TRG)

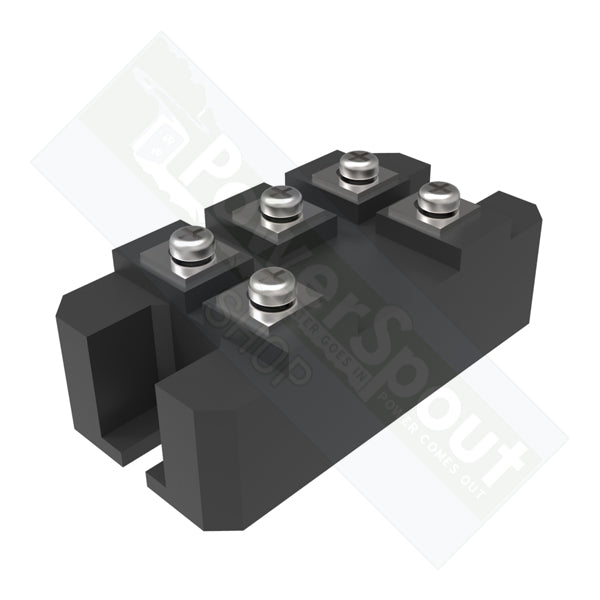

• 100A Rectifier

You can choose from the following options (Pelton - 2 sets / Turgo - 4 sets):

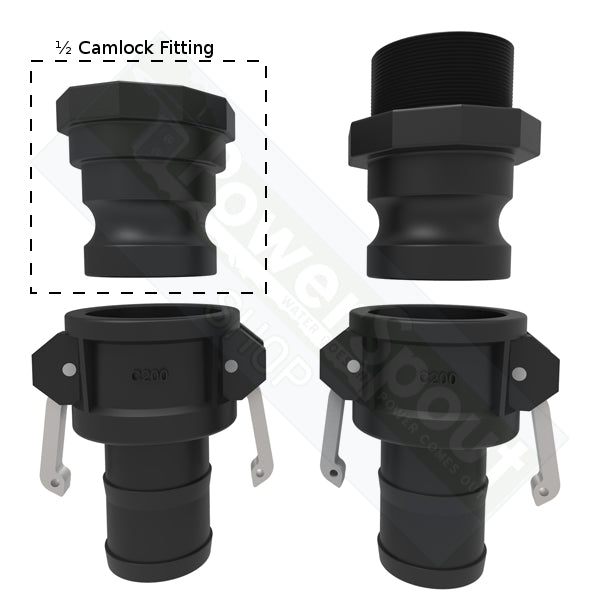

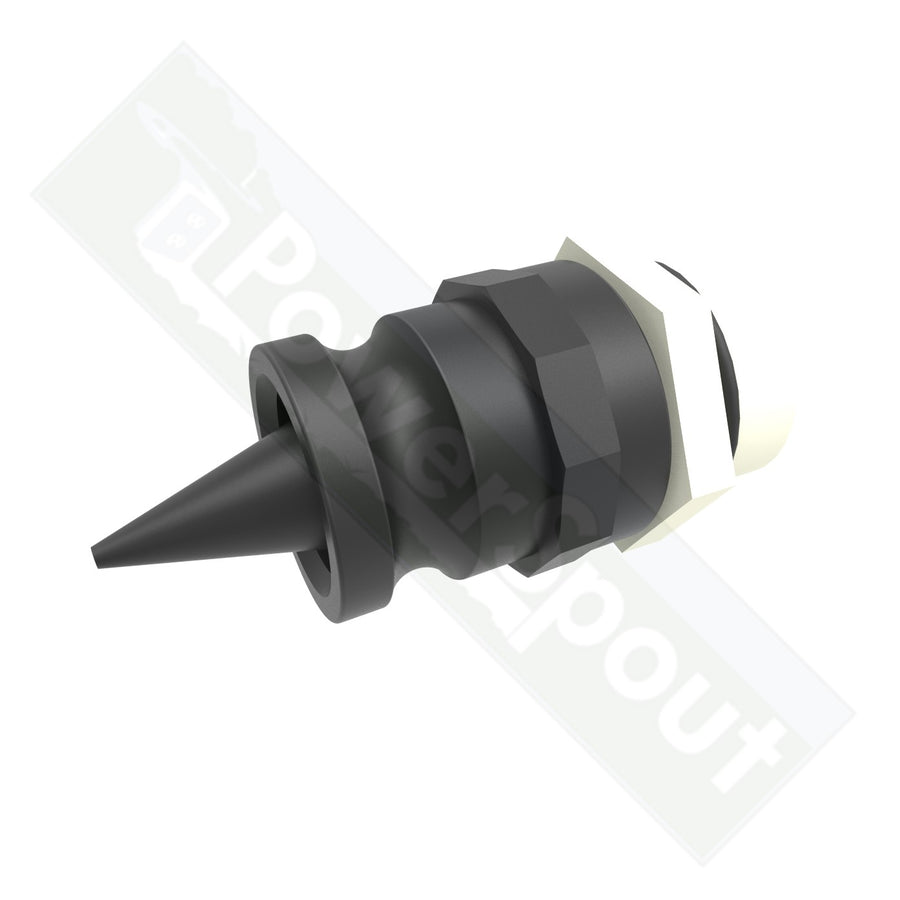

• Full Camlock Fittings Only - Turgo

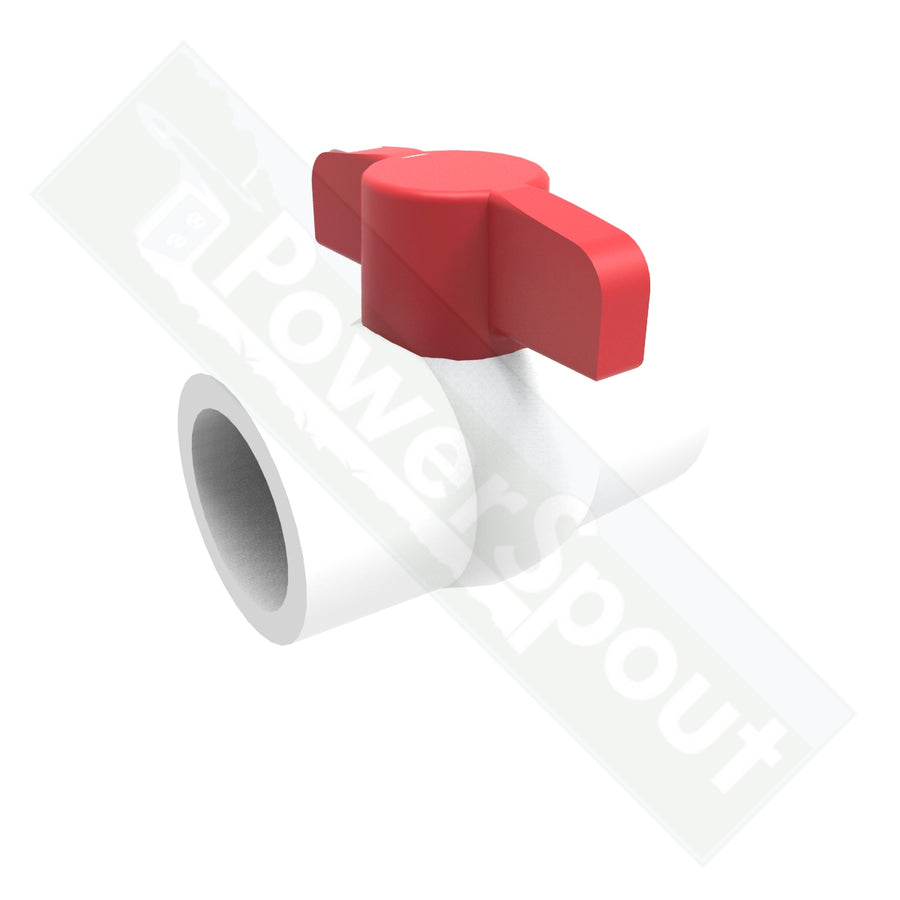

• Valves Only - Pelton
• Valves & Full Camlock Fittings - Pelton & Turgo

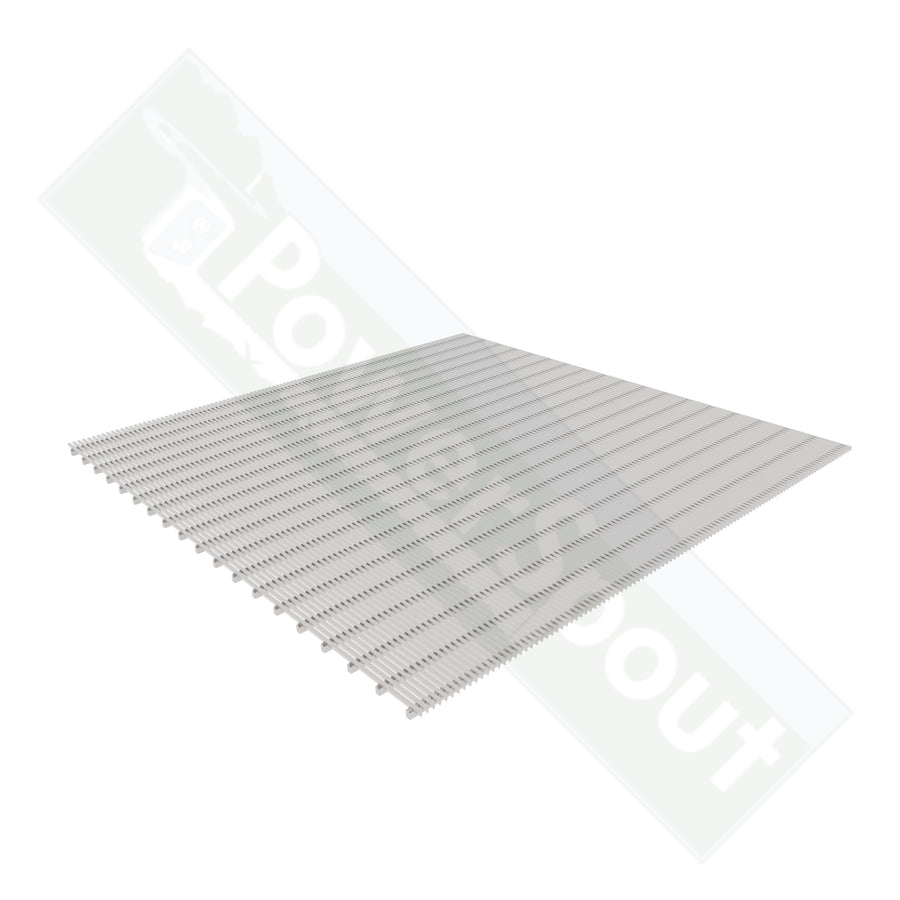

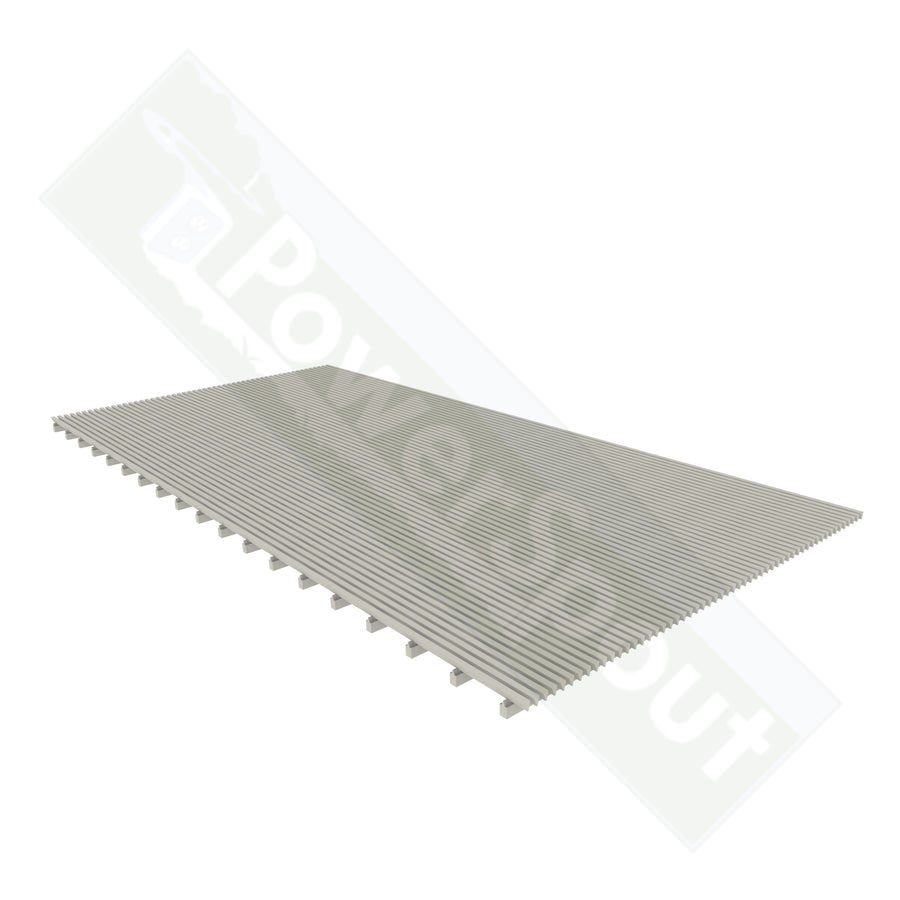

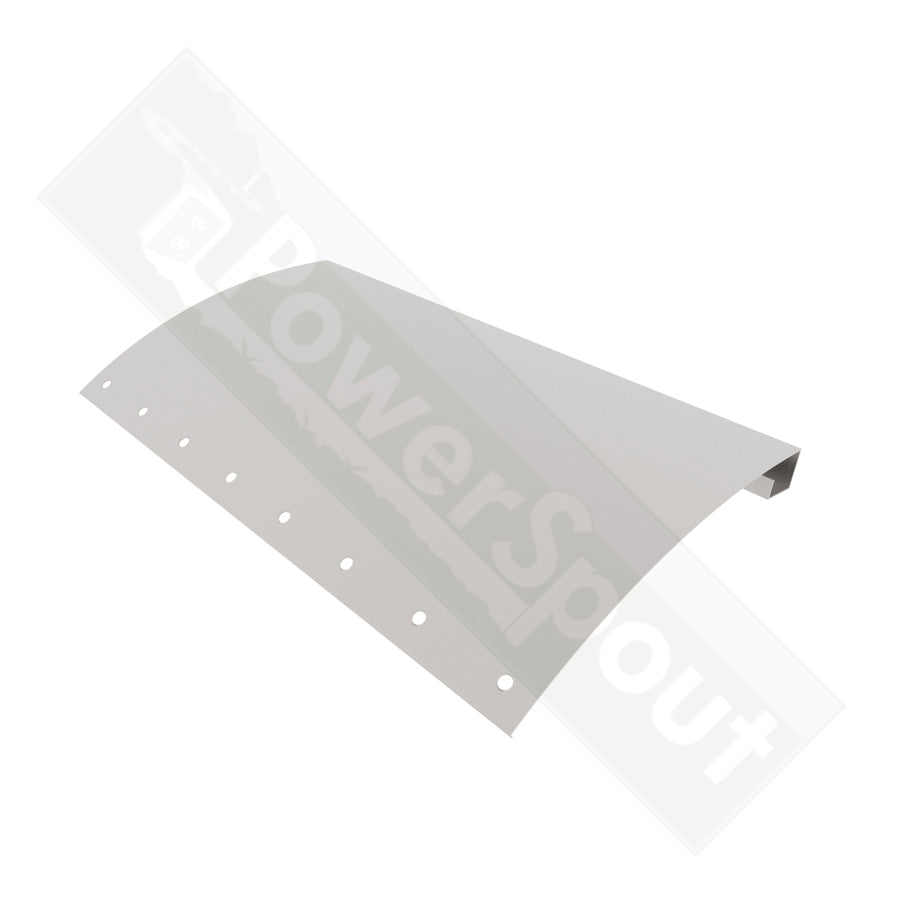

We can also bundle in a DIY Coanda Intake Screen A pelton kit comes with a half screen and a turgo kit comes with a full screen. An acceleration plate is essential and we can supply this or you can make one yourself.

Click here for a video of how to assemble the parts.

If you are building your own DIY turbine then you may find this document helpful. Use the tool here to do calculations for your site and enter your calculation code in the box above. Other DIY hydro turbine parts can be found here.
